54.18 Match AI AT-X Fire Red (.900) 20″ Threaded 5018 Match Trigger (016104AIFR)

SKU: 016104AIFR Category:

4,695.00 $

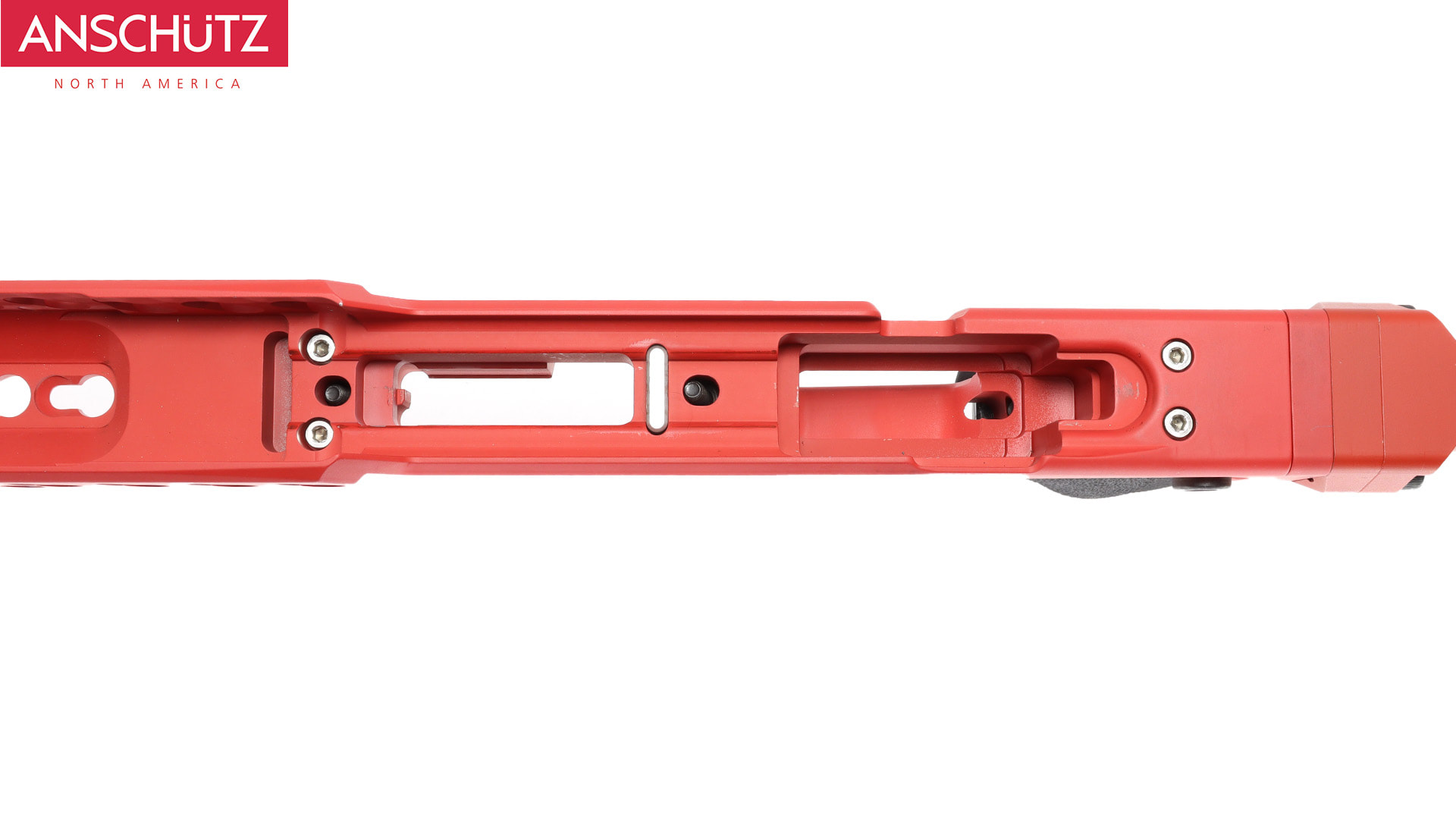

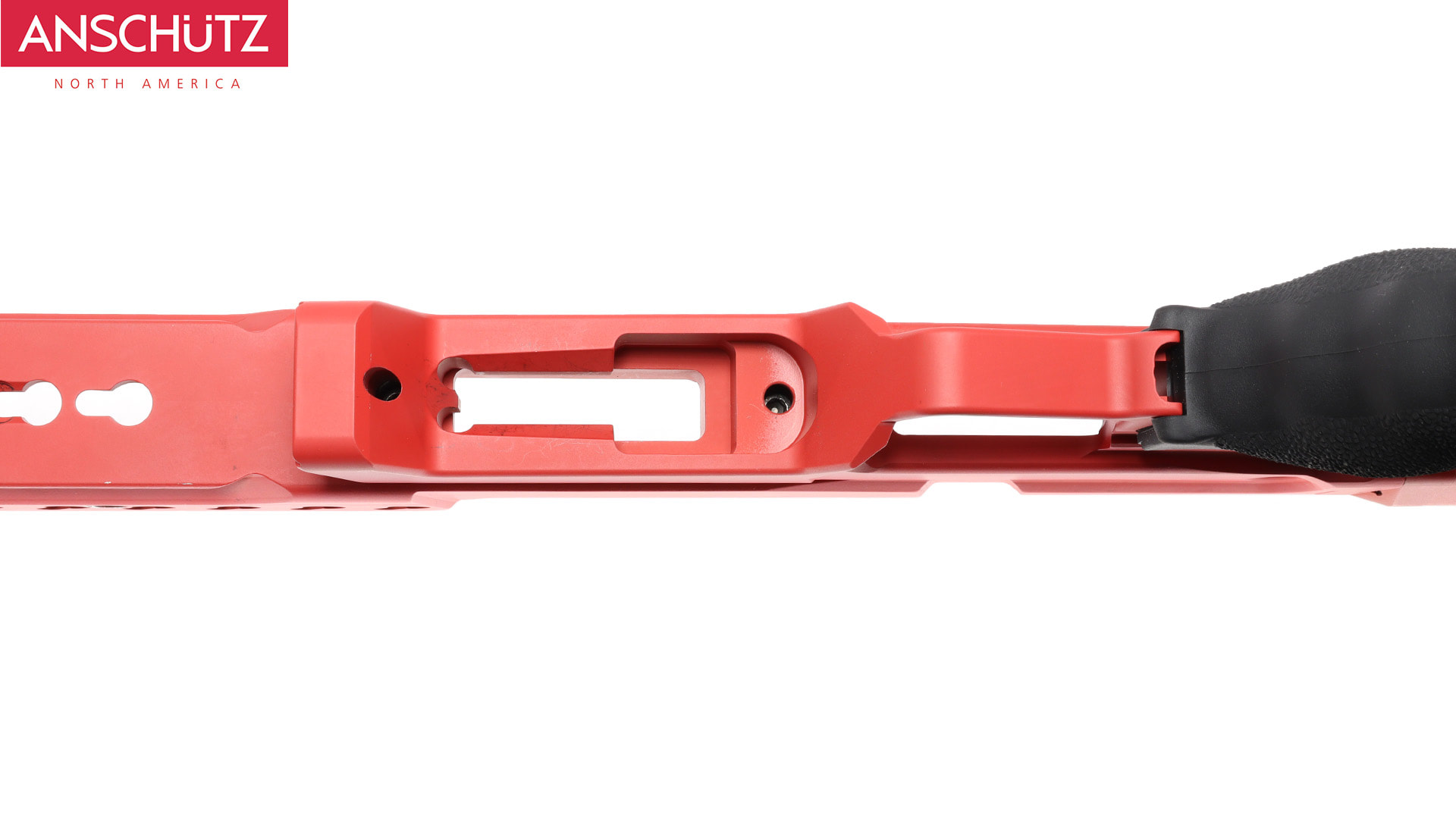

New Accuracy International Chassis for the Anschutz 54.18 and 1727 Straight Pull Actions! One amazing chassis that will fit two world renowned actions!

See our other listings for the 1727 AI Chassis models and pricing.

Available Now!

Our order with Accuracy International secured us an exclusive so we also ordered three different colors. Take your pick or buy all three!

54.18 Match 22LR HB (.900) 20″ Threaded AI AT-X Chassis with AI Picatinny 30 MOA Rail Included

(Choose Your Color)

016104AIDE – Dark Earth (DE)

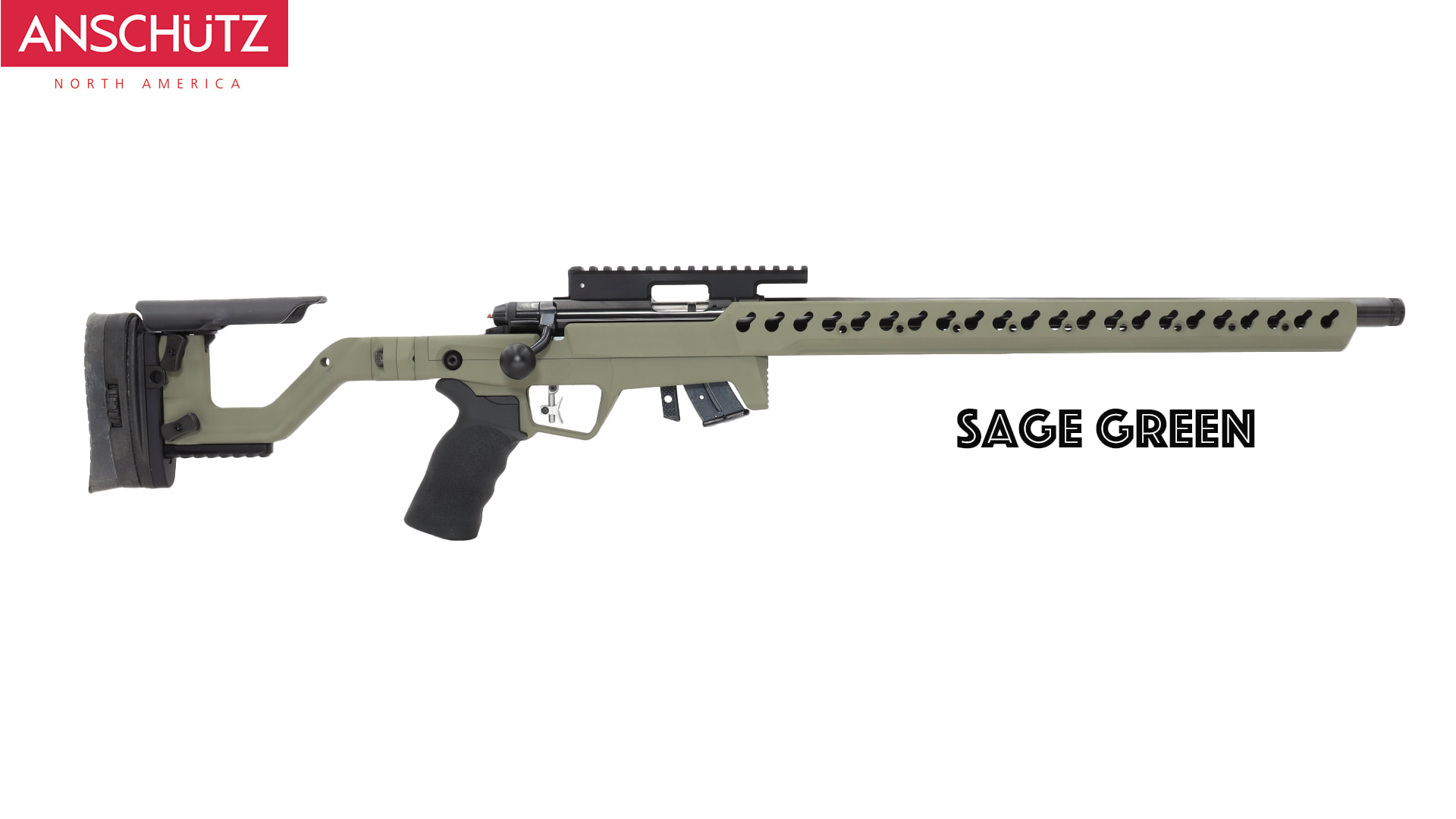

016104AISG – Sage Green (SG)

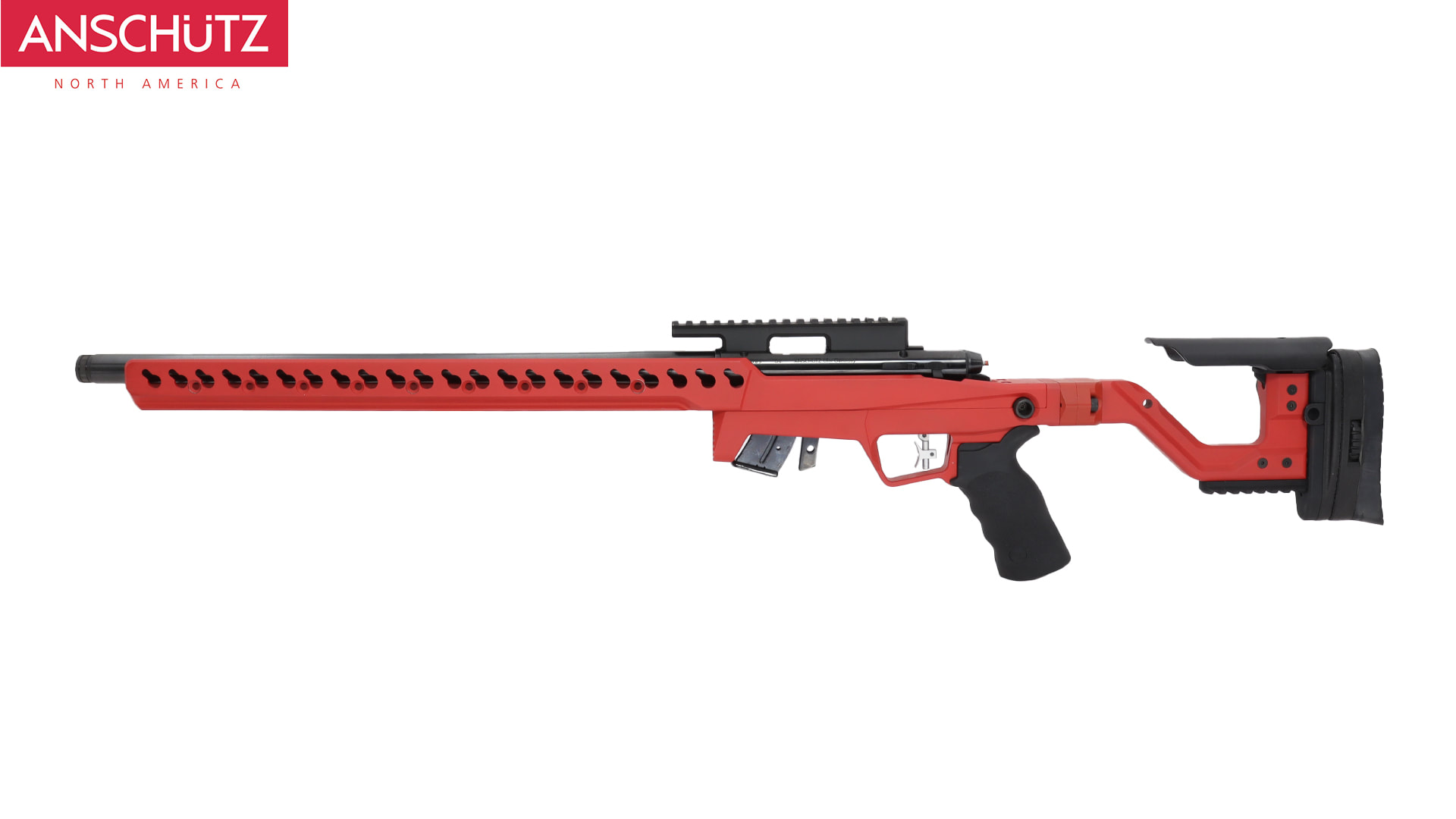

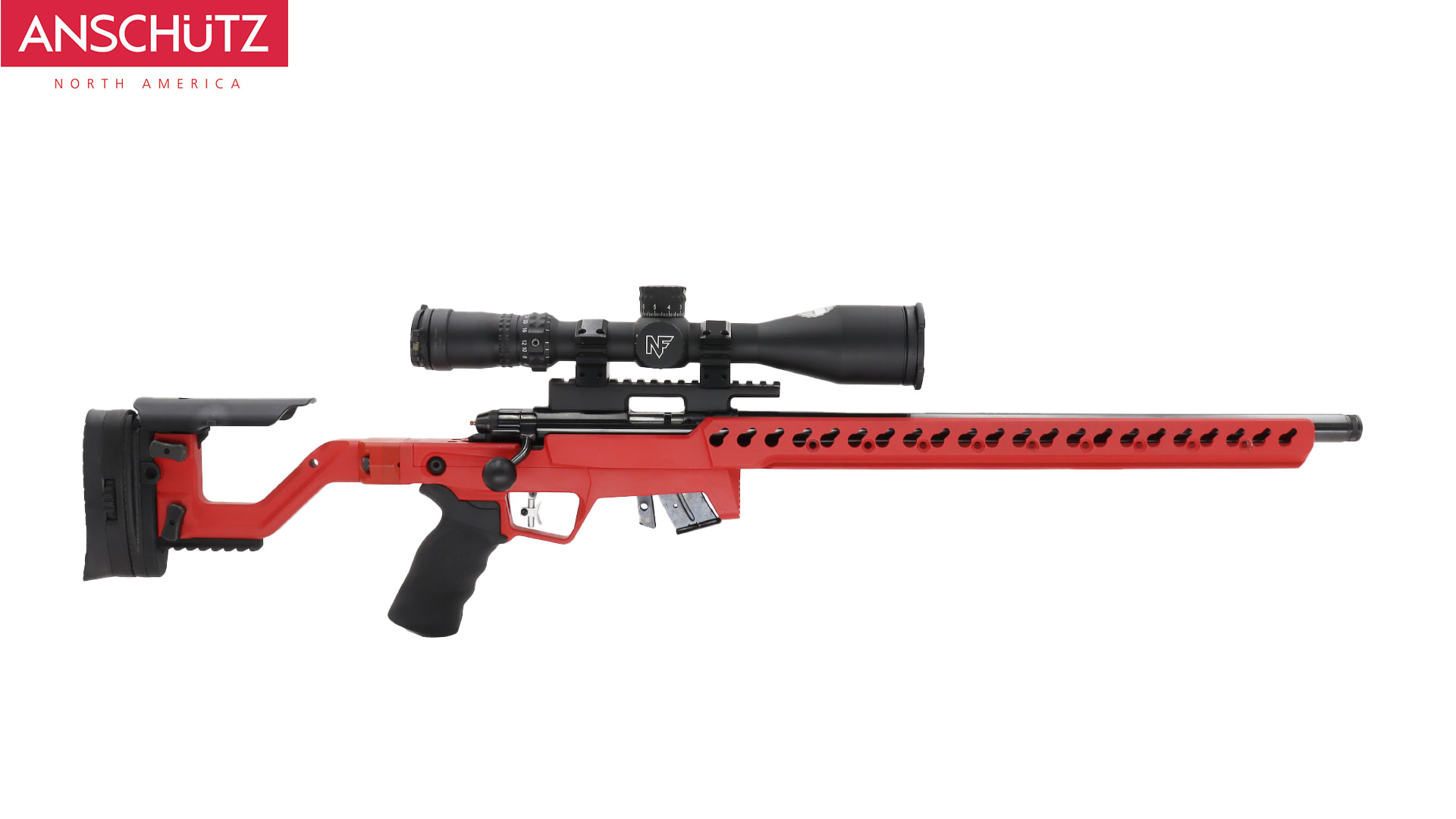

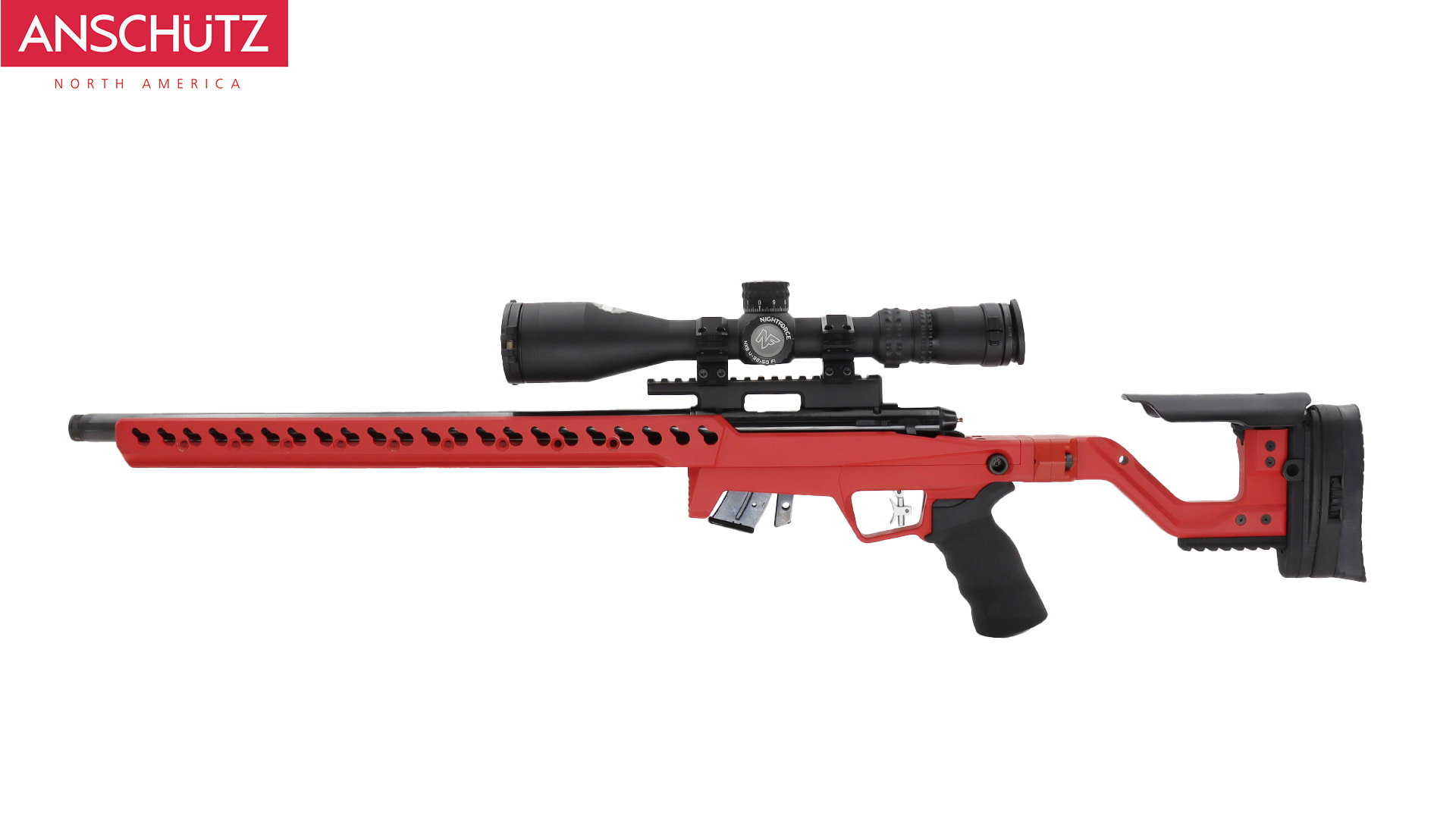

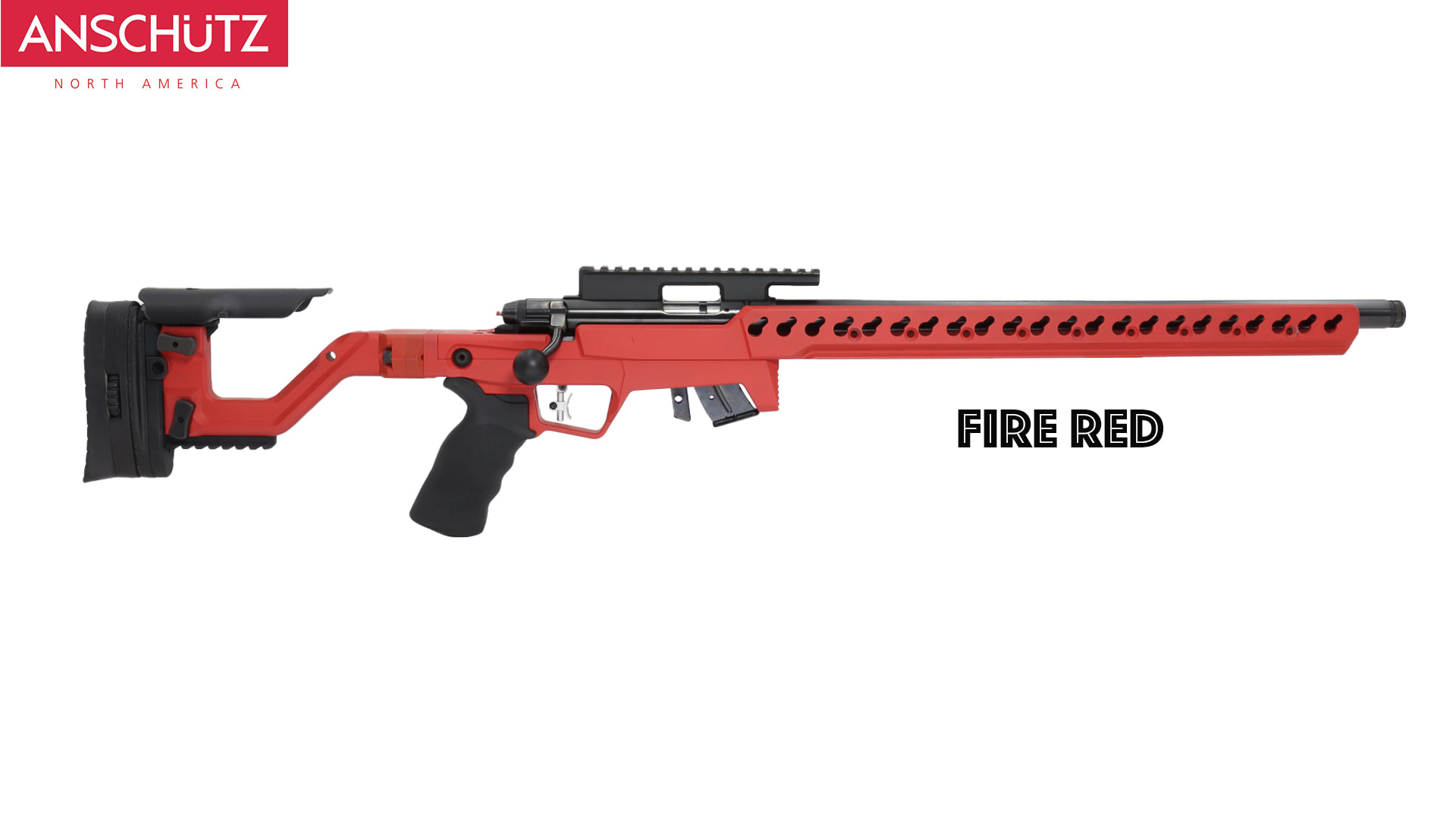

016104AIFR – Fire Red (FR) – Shown Above in First Photo

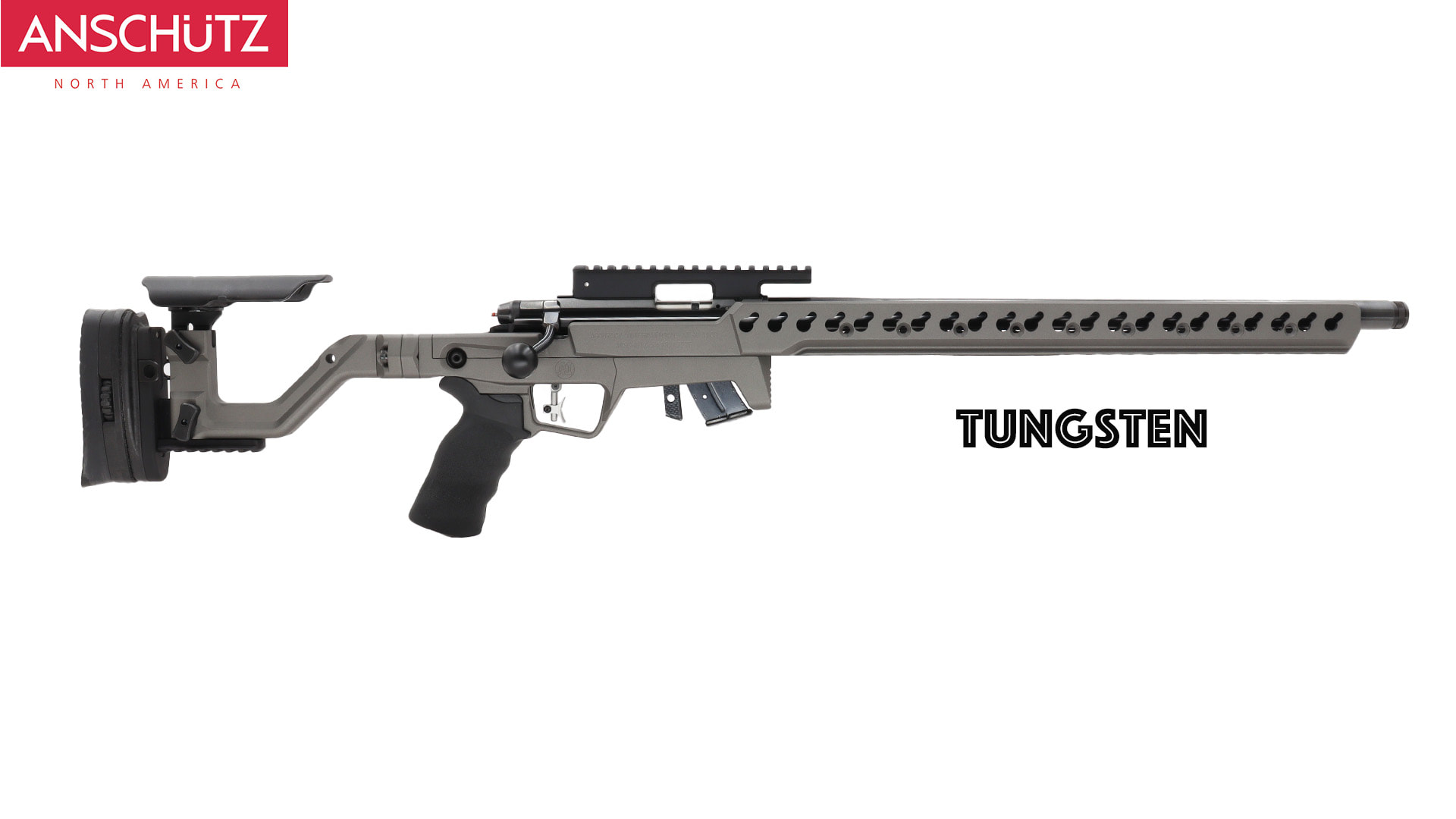

016104AITN – Tungsten (TN)

Caliber: .22LR

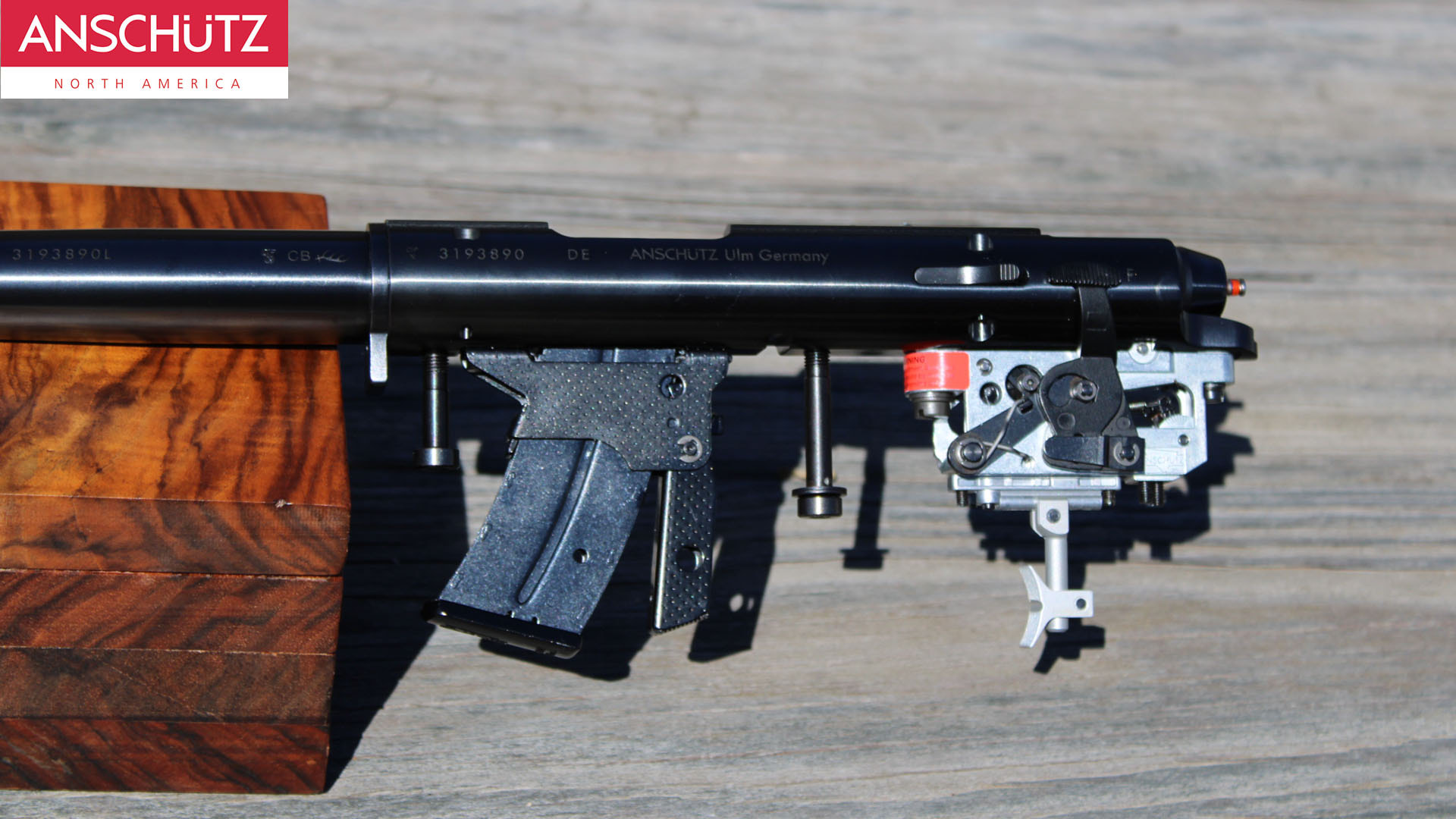

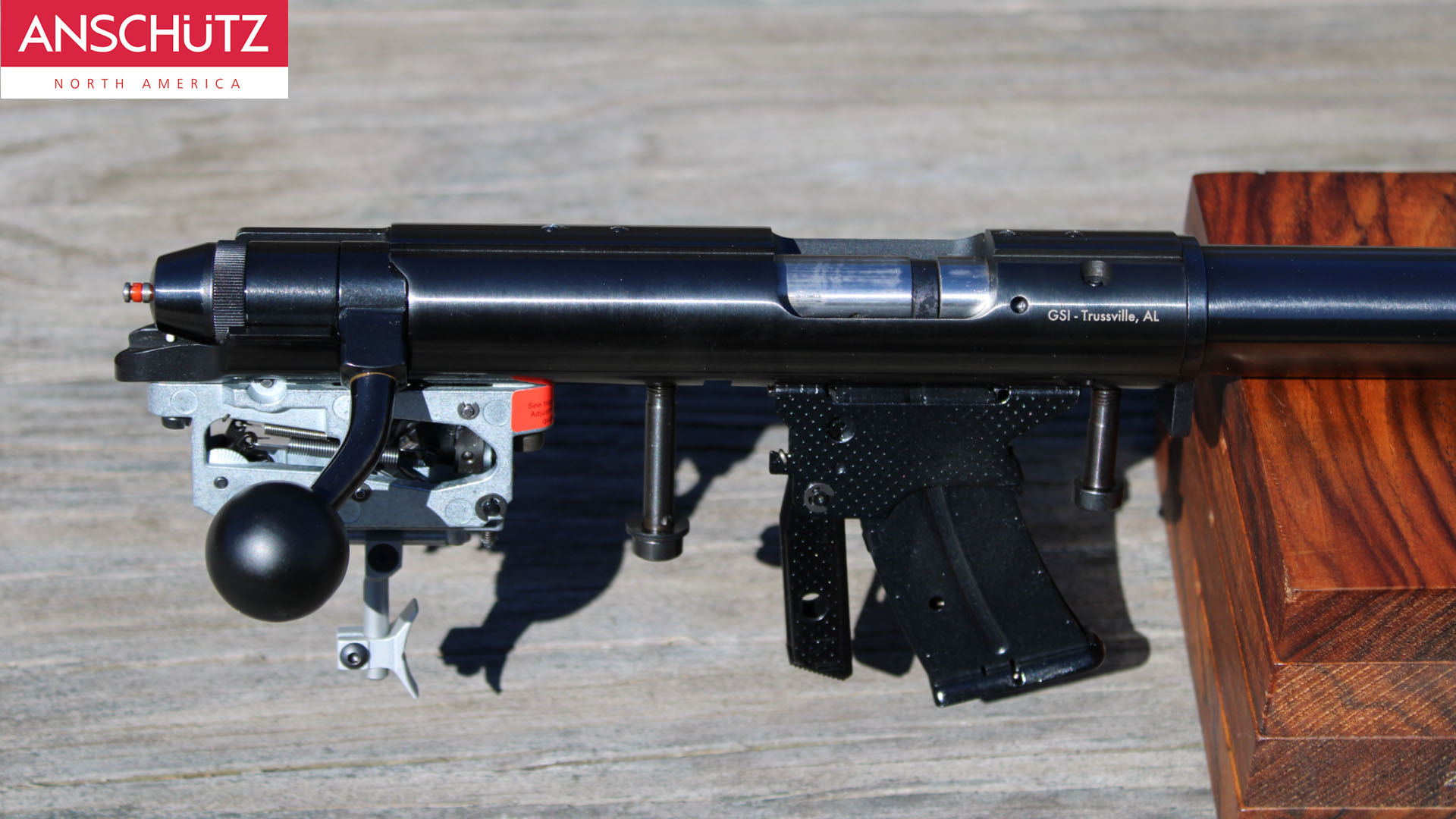

System: Match 54 bolt action repeater, 5018 match trigger, blued receiver and blued barrel.

Weight: 10 lbs, 13 oz. (including Picatinny mount)

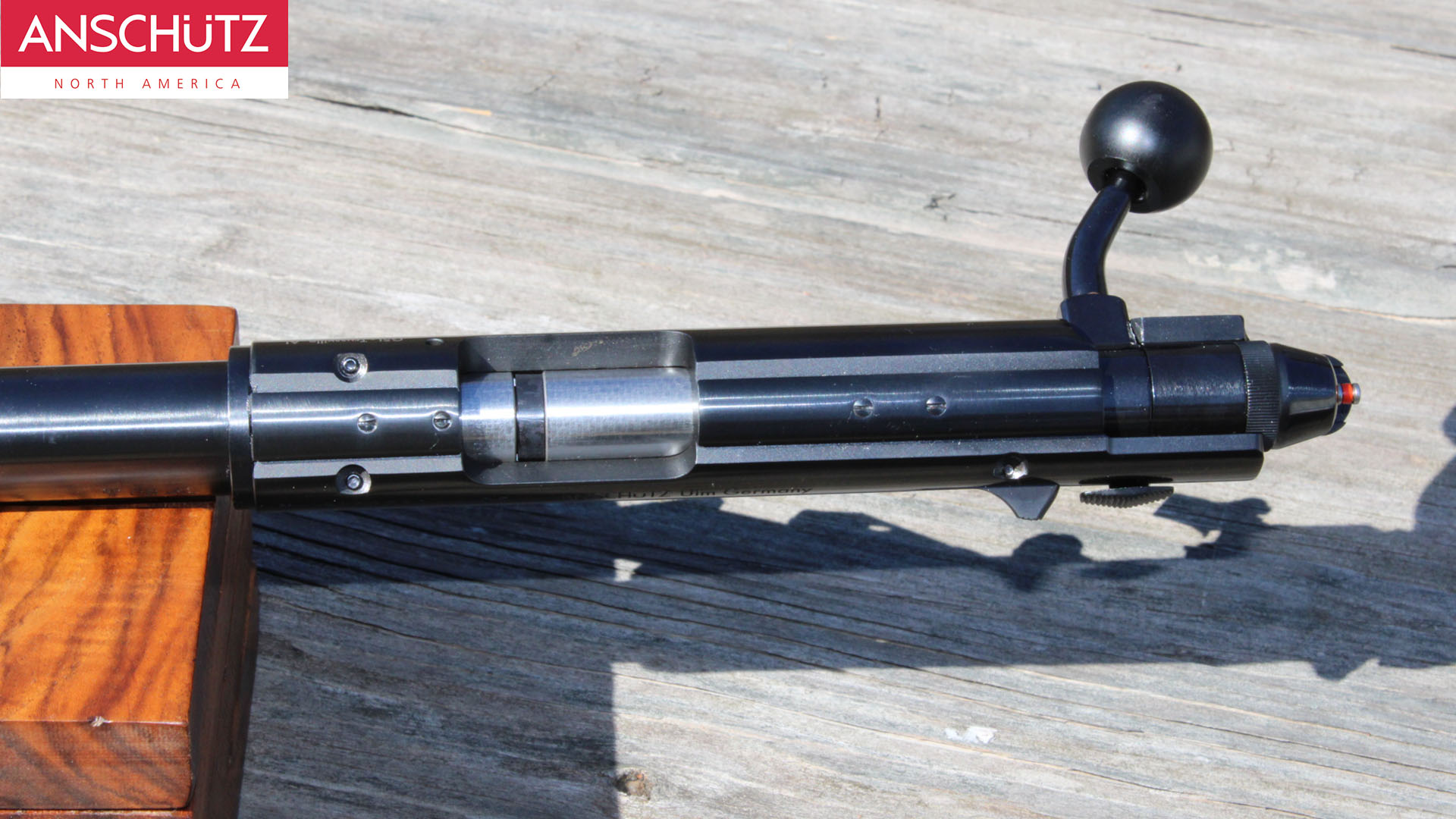

Receiver: Scope mount attachment with 11mm rail and drilled and tapped (Same hole spacing as 1710 and 1712 action) Picatinny 30 MOA Rail Included! See below.

Barrel Length: 20″ blued heavy barrel, no iron sight provision

Chamber: Optimized Match Chamber

Crown: Recessed Target Crown

Muzzle Diameter: 0.900″ (Tapered down from 0.987″)

Muzzle Thread: G-28 also known as 1/2 x 28 exclusively for the USA

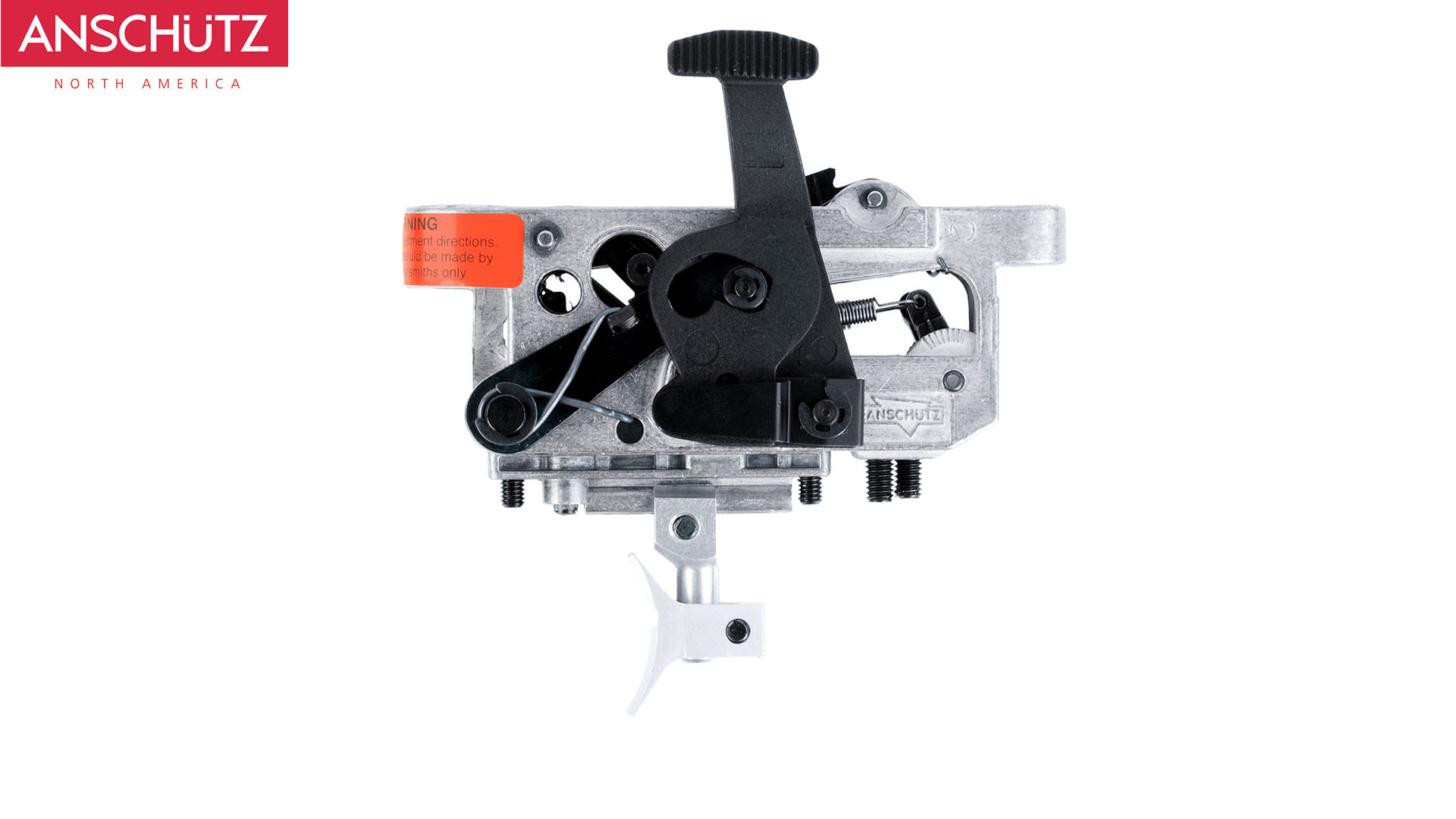

Trigger: 5018 Match Two Stage Trigger. Can be adjusted to be Single Stage

Trigger Weight: Adjusted to 3.2 oz. (90.7g)

Trigger Weight Range: 2.4 to 7.0 oz. (68.0 to 198.4g)

Trigger Post: Upgraded to 30mm length from standard 20mm length

Trigger Blade: Anschutz 007434 in silver

Magazine Capacity: 10

Magazine Release: Extended

Stock Style: Chassis AT-X by Accuracy International

Stock LOP: Approximately 13.50″ Min and 16.25″ Max (Trigger position is adjustable)

Case: Anschutz Mega case with logo is included

Accessories included on this rifle:

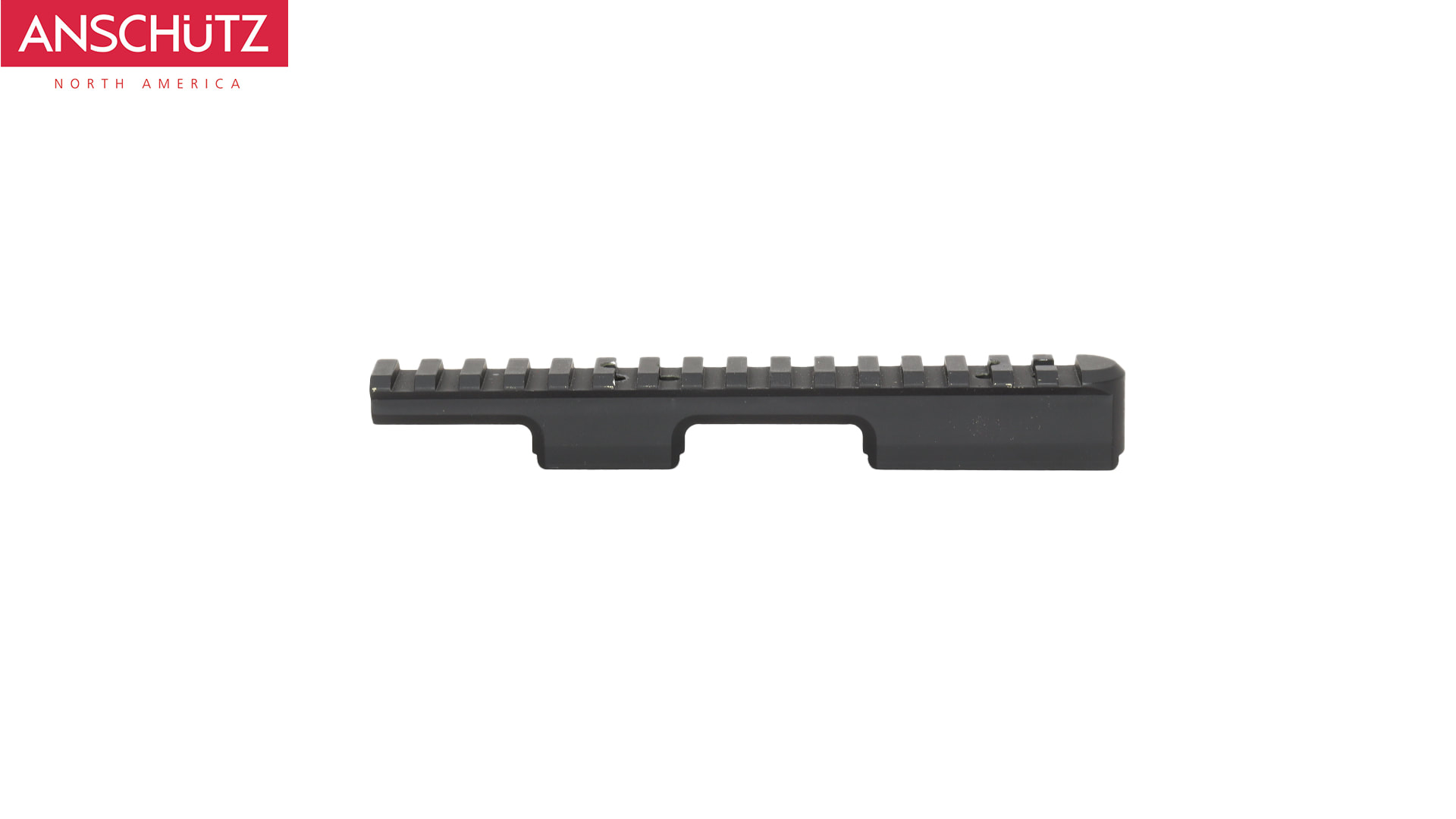

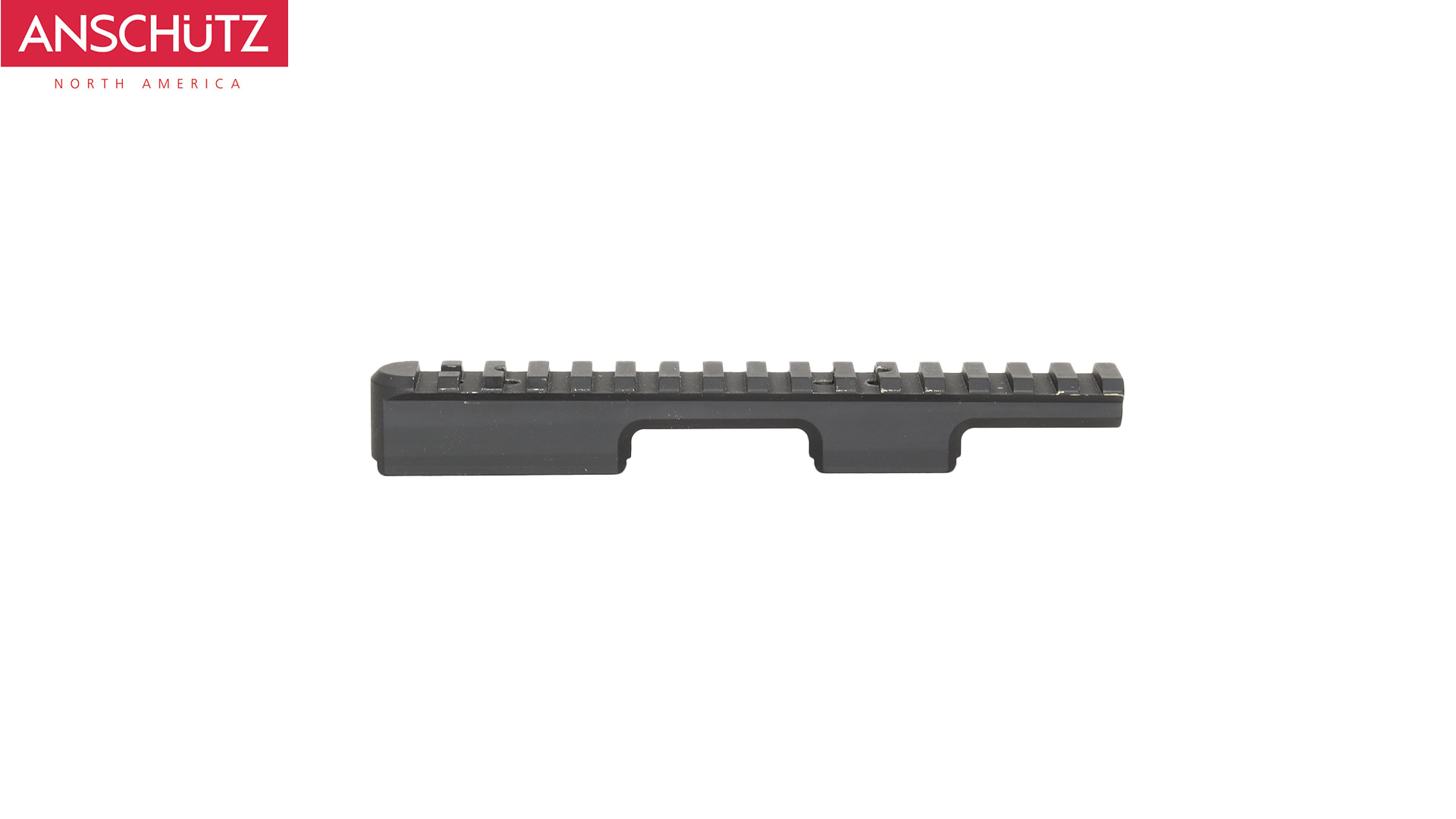

AI custom scope mounting rail – picatinny 30 MOA. Provides correct height in relationship to the AI AT-X chassis cheek piece.

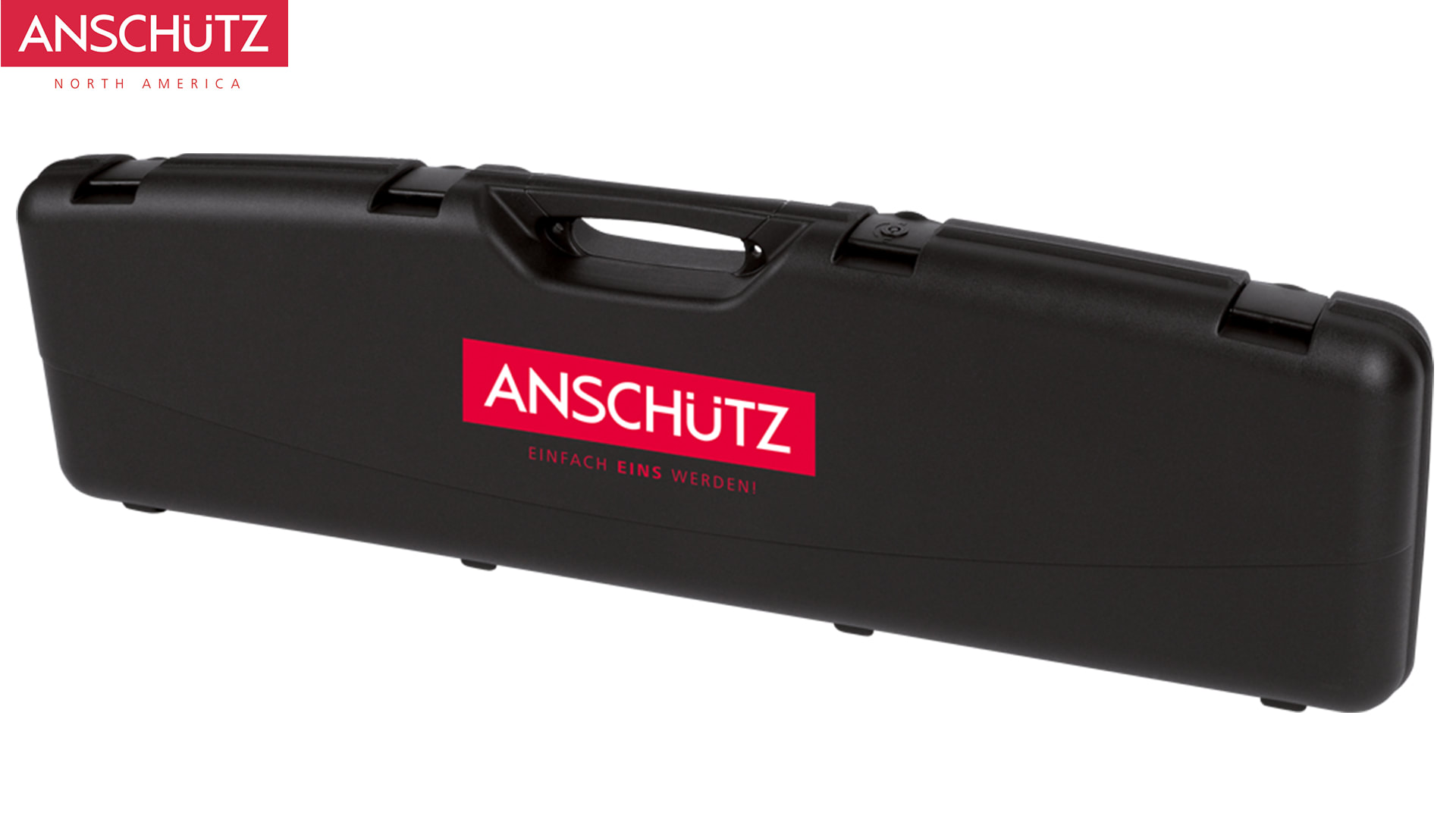

Anschutz Mega Case with logo

Note: 54.18 models will NOT fit the 1710 / 1712 stocks and chassis

Available Accessories:

SKU 001154 – Magazine 10-rd

SKU 014134 – Cleaning Rod Guide

Note: Due to the anodizing process, colors may vary from the displayed images.

Note Items NOT Included:

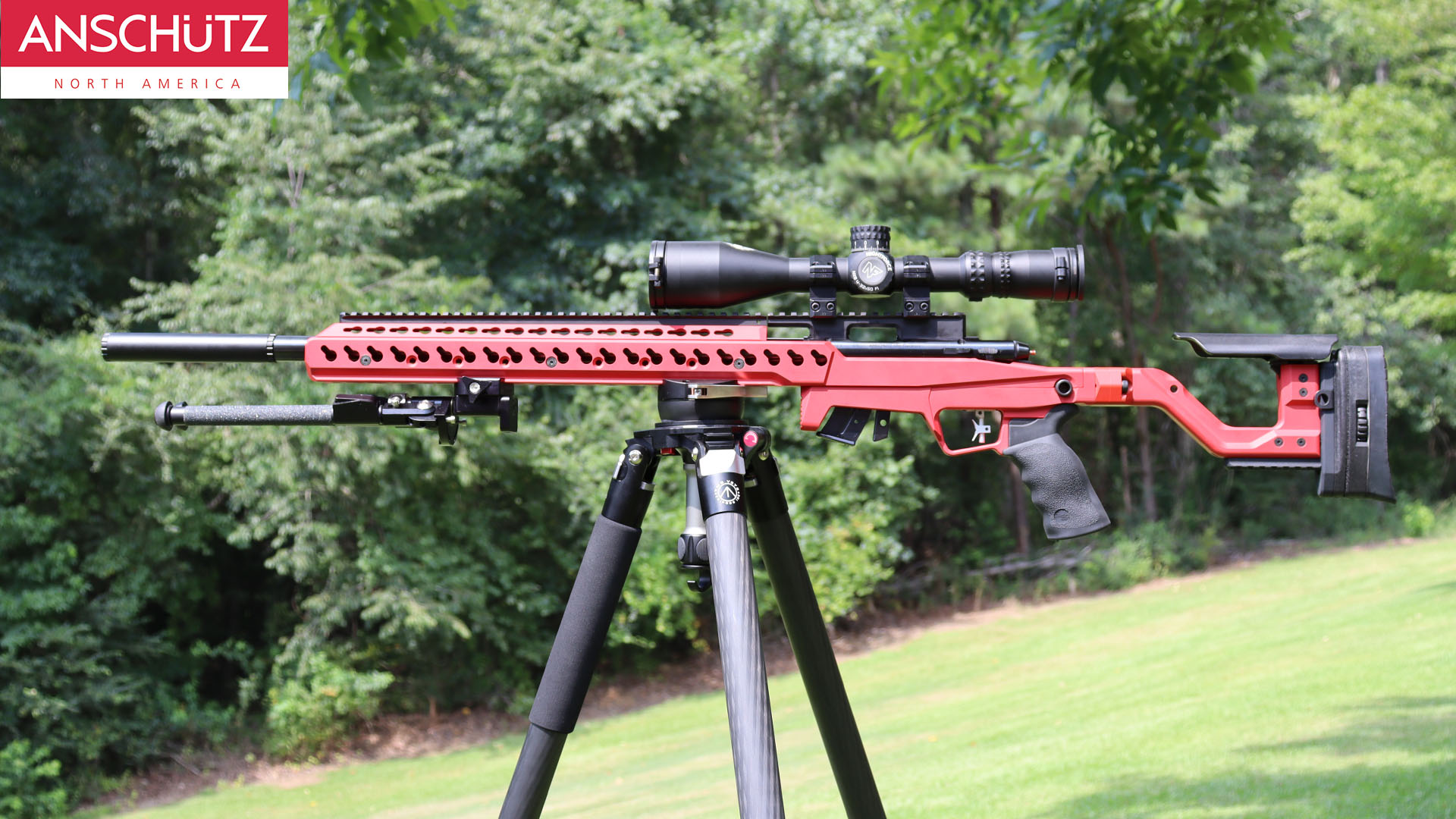

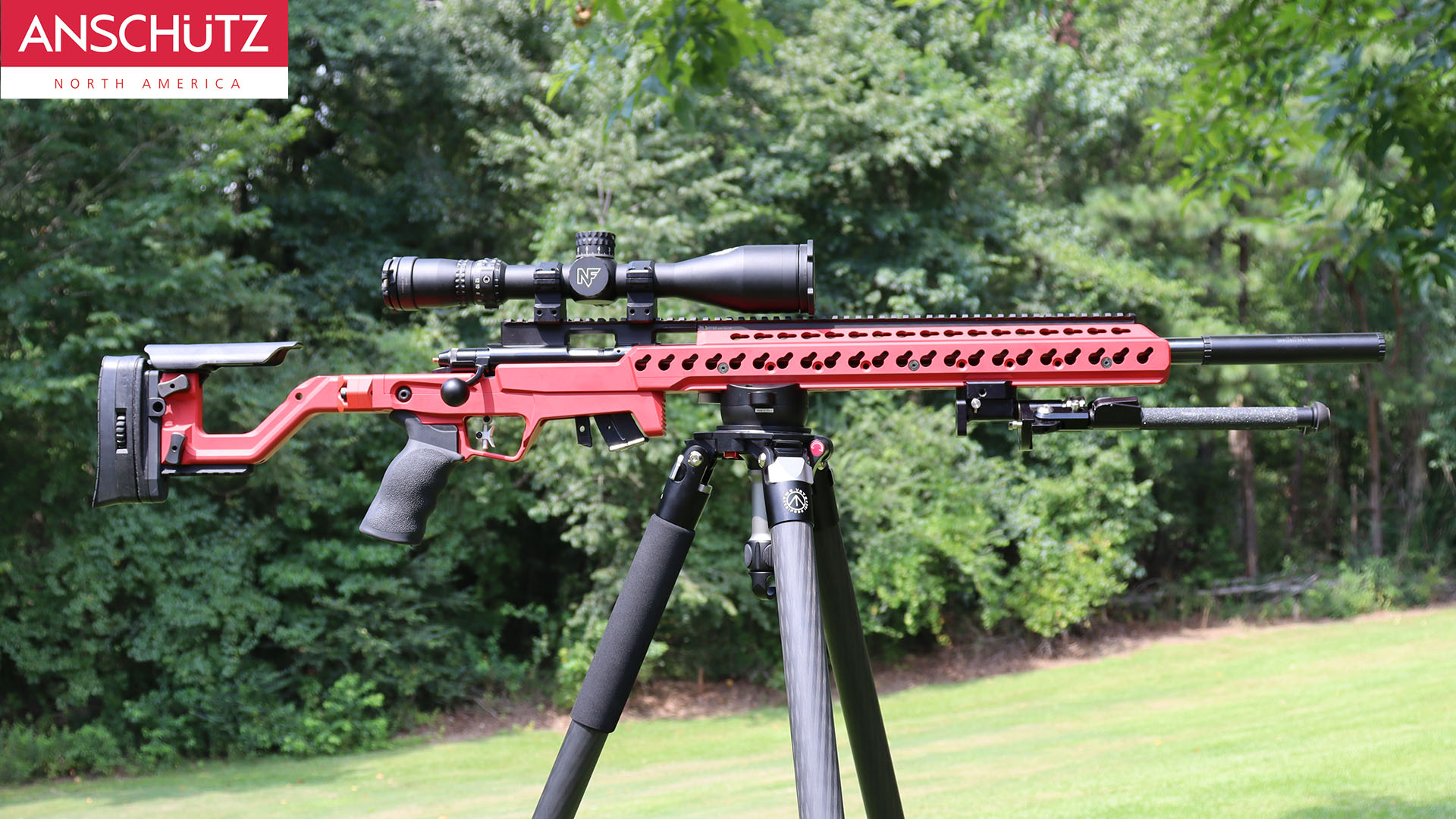

Scope, tripod, bipod and accessories, sound suppressor or any other photographic props.

Please see the link below for Manual, Spare parts list and additional information:

https://www.anschuetz-sport.com/en/downloads/
