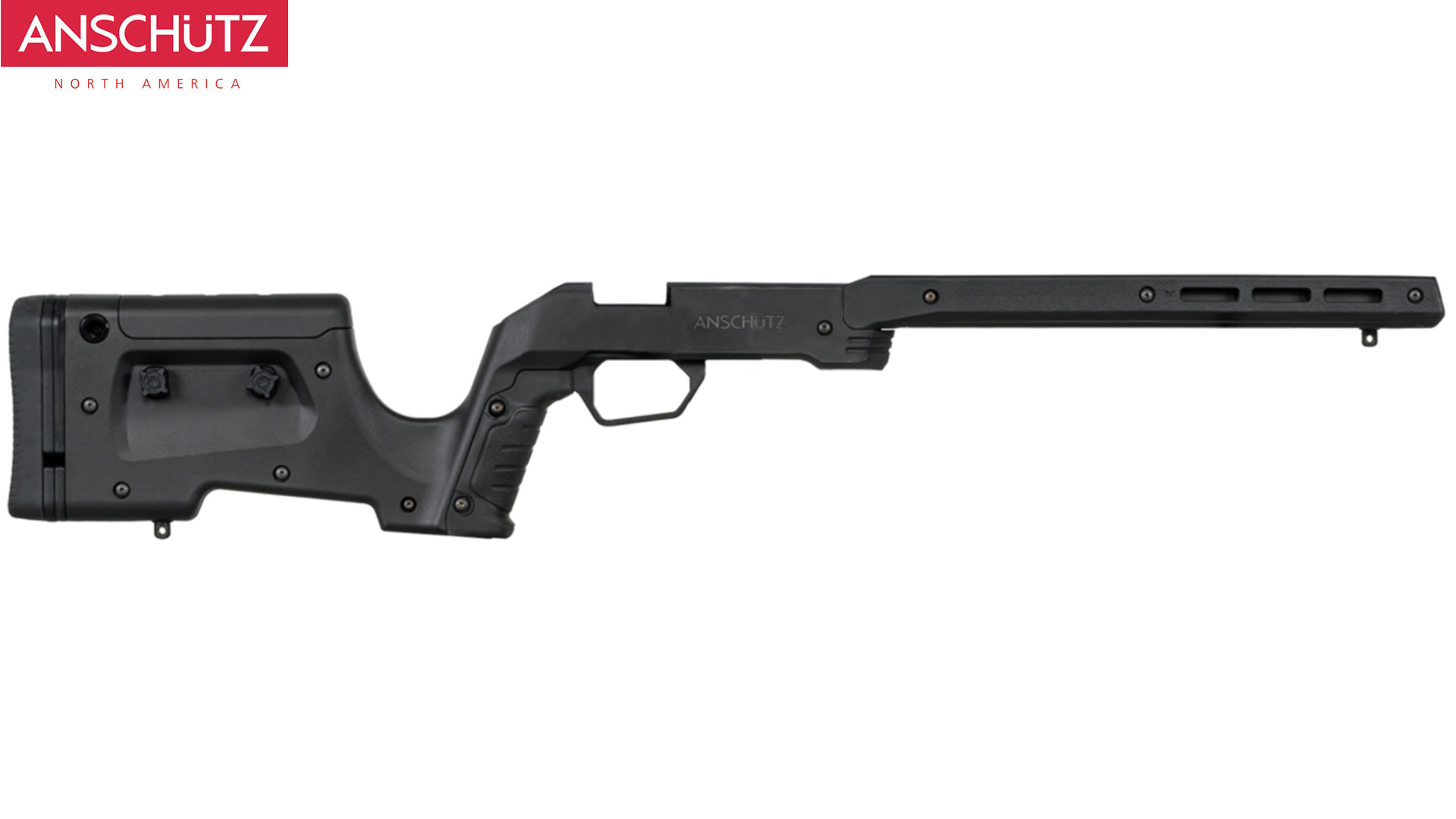

MDT XRS Chassis Features
- CNC Machined core of 6061 aircraft grade aluminum
- High strength textured polymer panels for insulation from the elements
- Precision aluminum V-block bedding system
- MLOK™ attachment points along the 12″ forearm for attachment of various ARCA and Picatinny rails

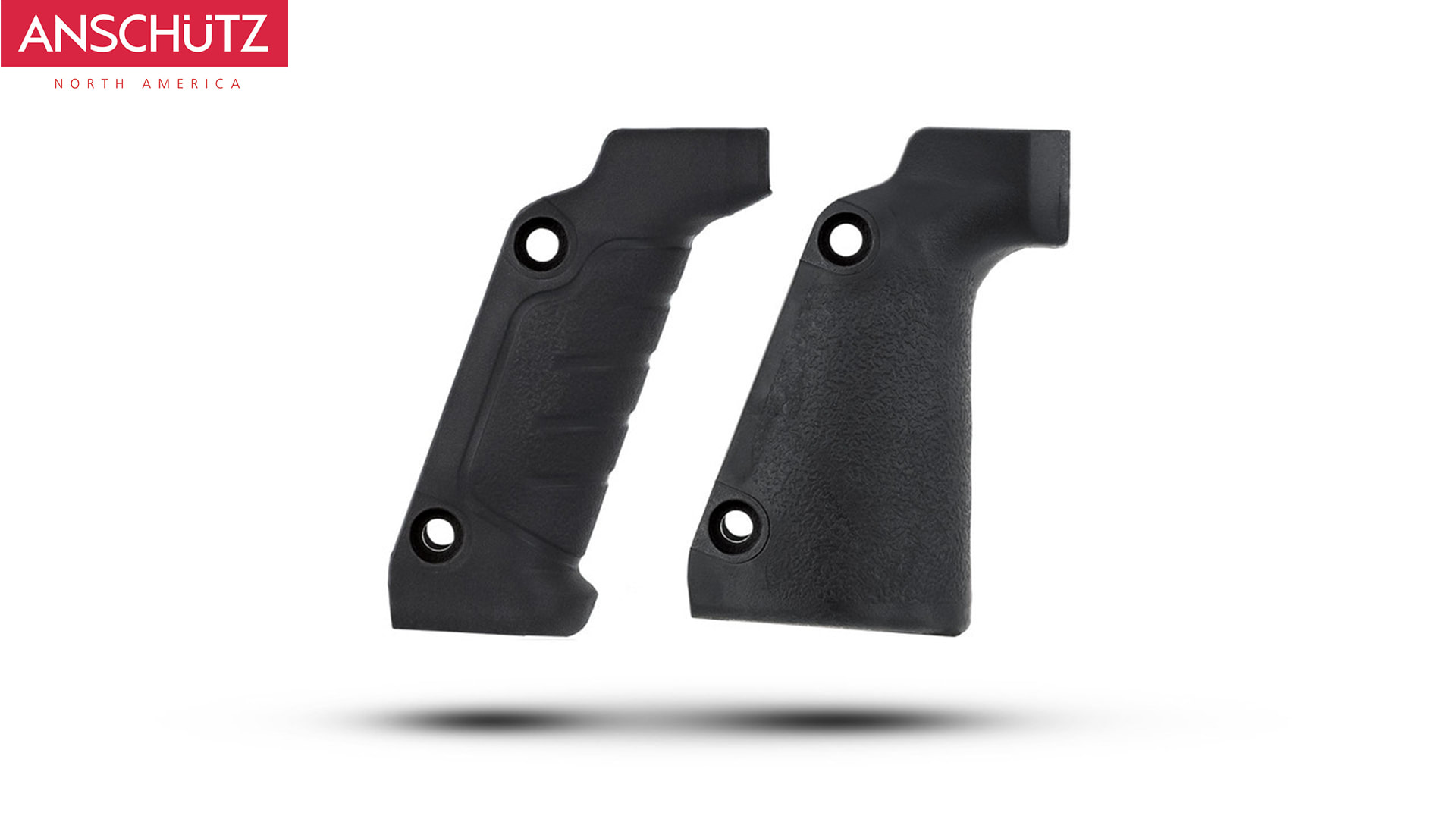

- Grip panels are interchangeable and both an angled and vertical panel are included with the XRS chassis
- Integrated barricade stop
- Ambidextrous magazine latch
- QD sling mount on both sides of the butt stock
- Adjustable LOP: 13.25″ to 14.25″ via spacers (14.25″ is with 5 spacers)
- Spacers – 2 included on chassis plus 3 packed with extra grip
- More than 5 spacers requires longer screws – socket head cap screw #10-32

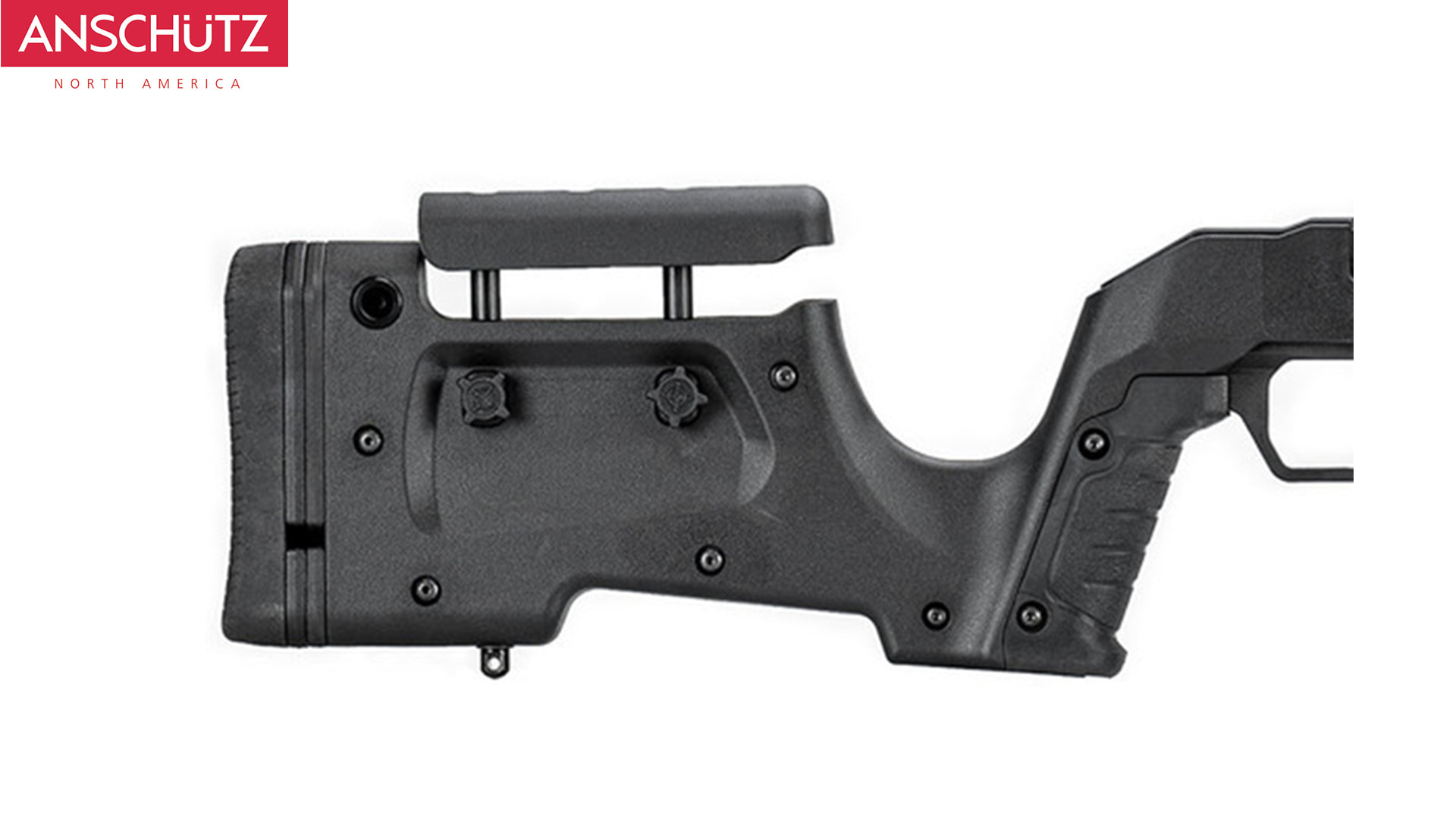

- Adjustable Cheek Piece Height
- Weight of chassis 3 lbs 14.0 oz (Approximately)
Special Note When Ordering:
You must specify which 1761 barreled action you intend to use.
The action screws and washer will breakdown as follows:
The 1761 models MSR, MPR and Classic rifles will need:
Qty 1 SKU 007810 – M5 x 14 socket head cap screw (front action screw)
Qty 1 SKU MDT.M5X30 – M5 x 30 socket head cap screw (rear action screw) with washer (11mm diameter & 2mm thick)
The 1761 APR models will need:
Qty 2 SKU 007810 – M5 x 14 socket head cap screw
(same front and rear action screw)
Qty 1 SKU 004650 – Washer (11mm diameter & 1mm thick)
(This washer is for the rear action screw)
